AC/DC SOLAR SUBMERSIBLE PUMP

Go Back

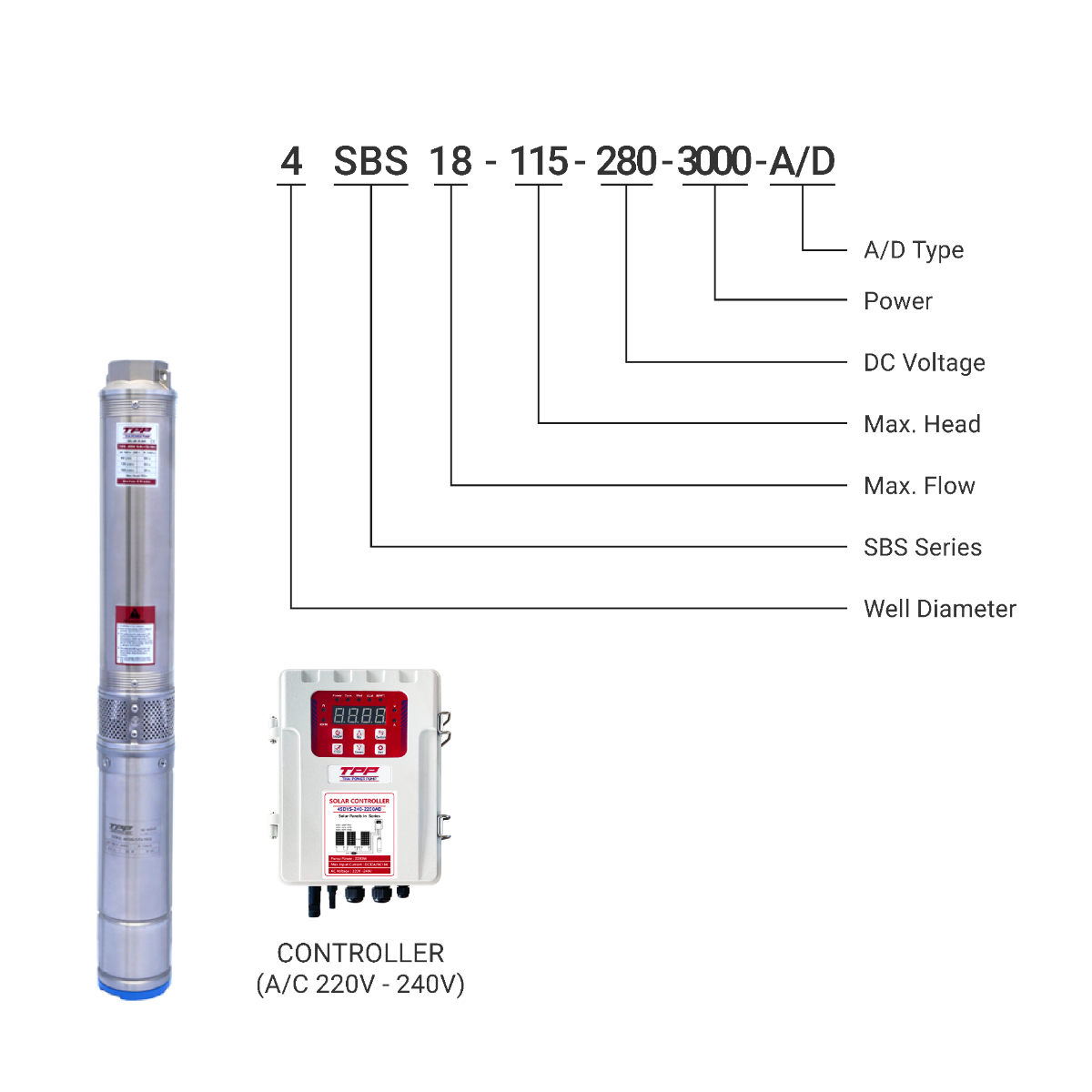

4SBS-A/D 3000W

4Inch AC/DC Submersible Pump

WIRING DIAGRAM

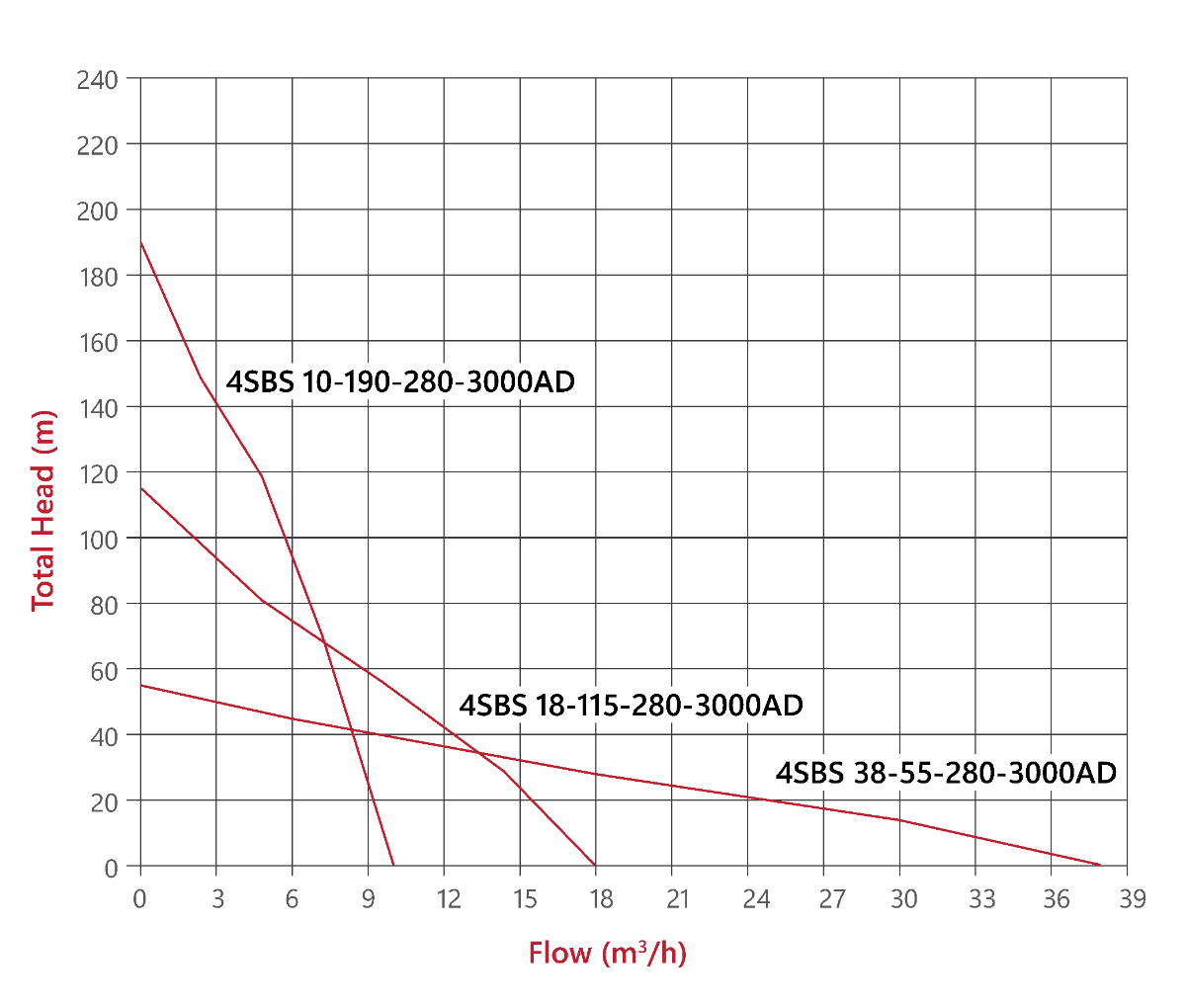

PERFORMANCE CURVES


TECHNICAL DATA


Model
Power
Max.Flow
Max.Head
Outlet (Inch)
4SBS 10-190-280-3000AD
3000W
10 m³/h
190 m
2"
4SBS 18-115-280-3000AD
3000W
18 m³/h
115 m
2"
4SBS 38-55-280-3000AD
3000W
38 m³/h
55 m
2.5"
