AC/DC SOLAR SUBMERSIBLE PUMP

Go Back

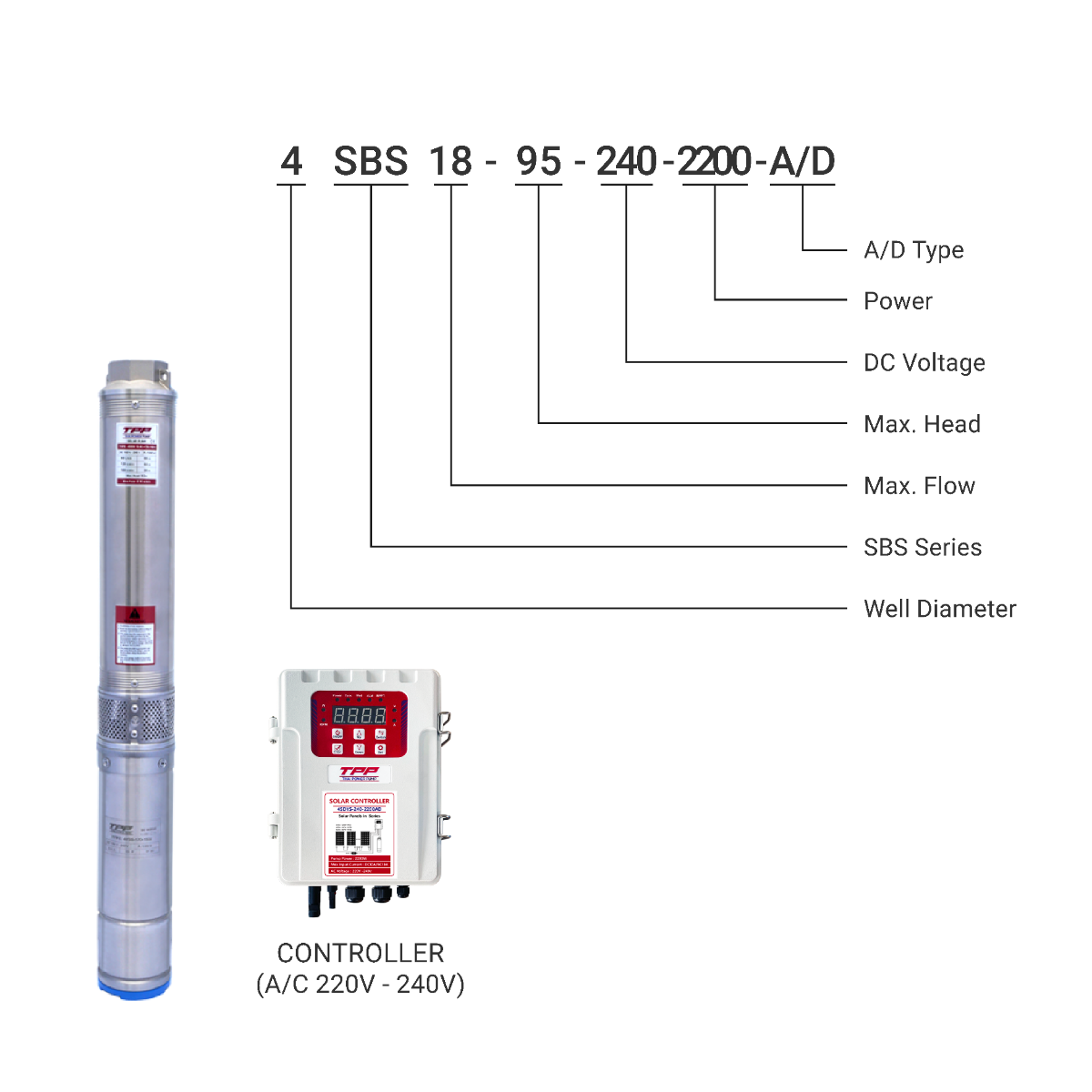

4SBS-A/D 2200W

4Inch AC/DC Submersible Pump

WIRING DIAGRAM

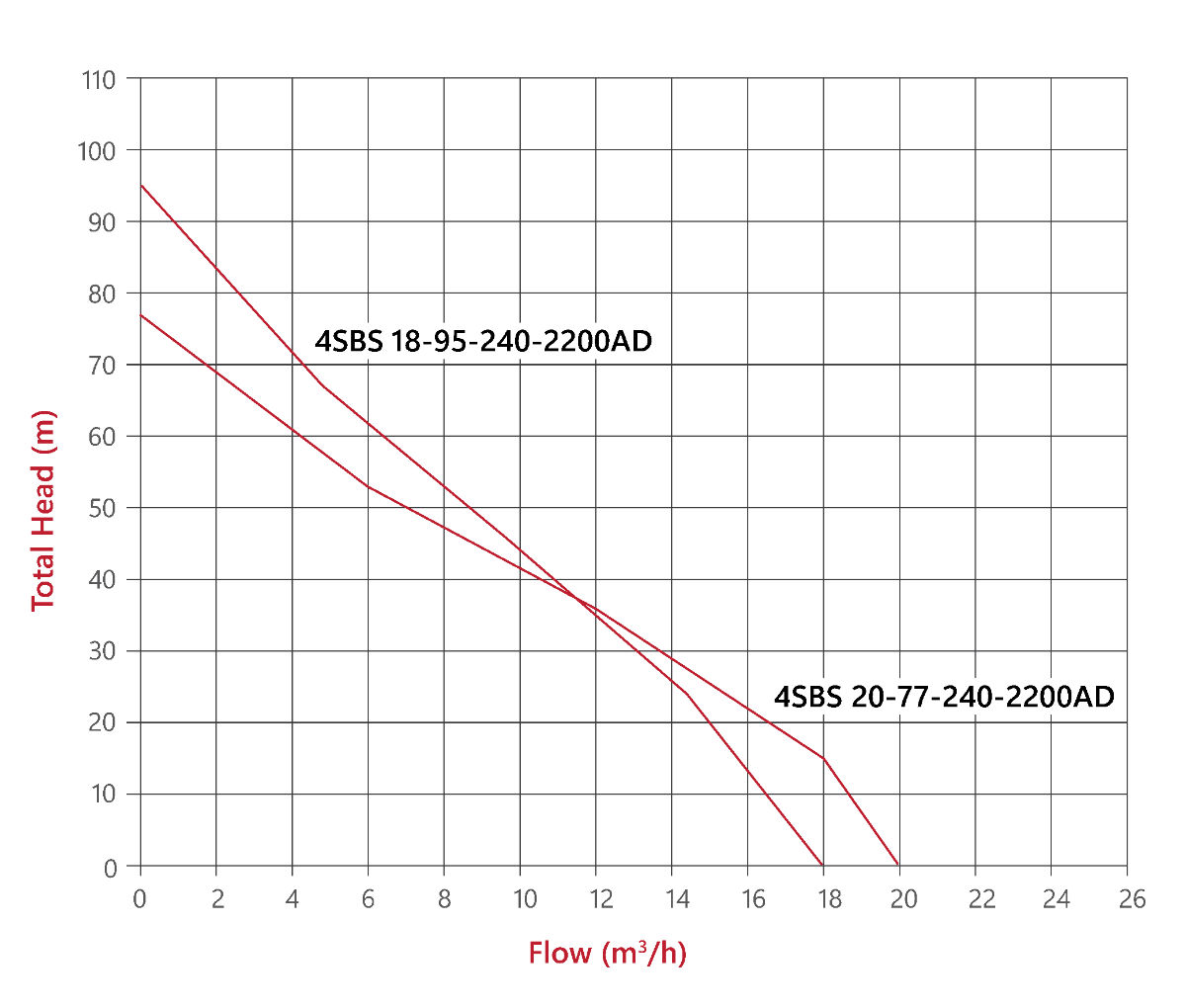

PERFORMANCE CURVES


TECHNICAL DATA


Model
Power
Max.Flow
Max.Head
Outlet (Inch)
4SBS 18-95-240-2200AD
2200W
18 m³/h
95 m
2"
4SBS 20-77-240-2200AD
2200W
20 m³/h
77 m
2"
