DC SOLAR SUBMERSIBLE PUMP

Go Back

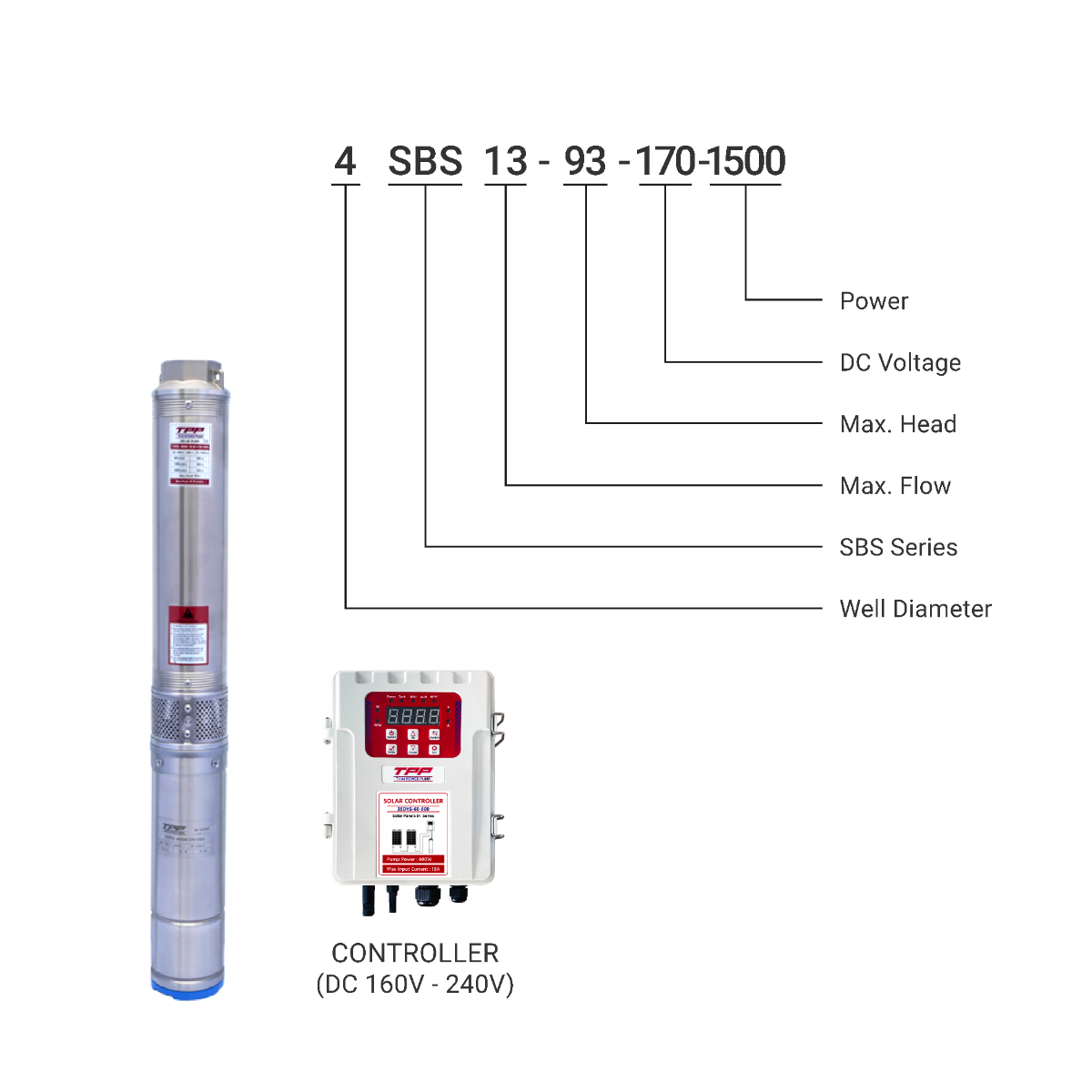

4SBS 1500W

4Inch DC Submersible Pump

WIRING DIAGRAM

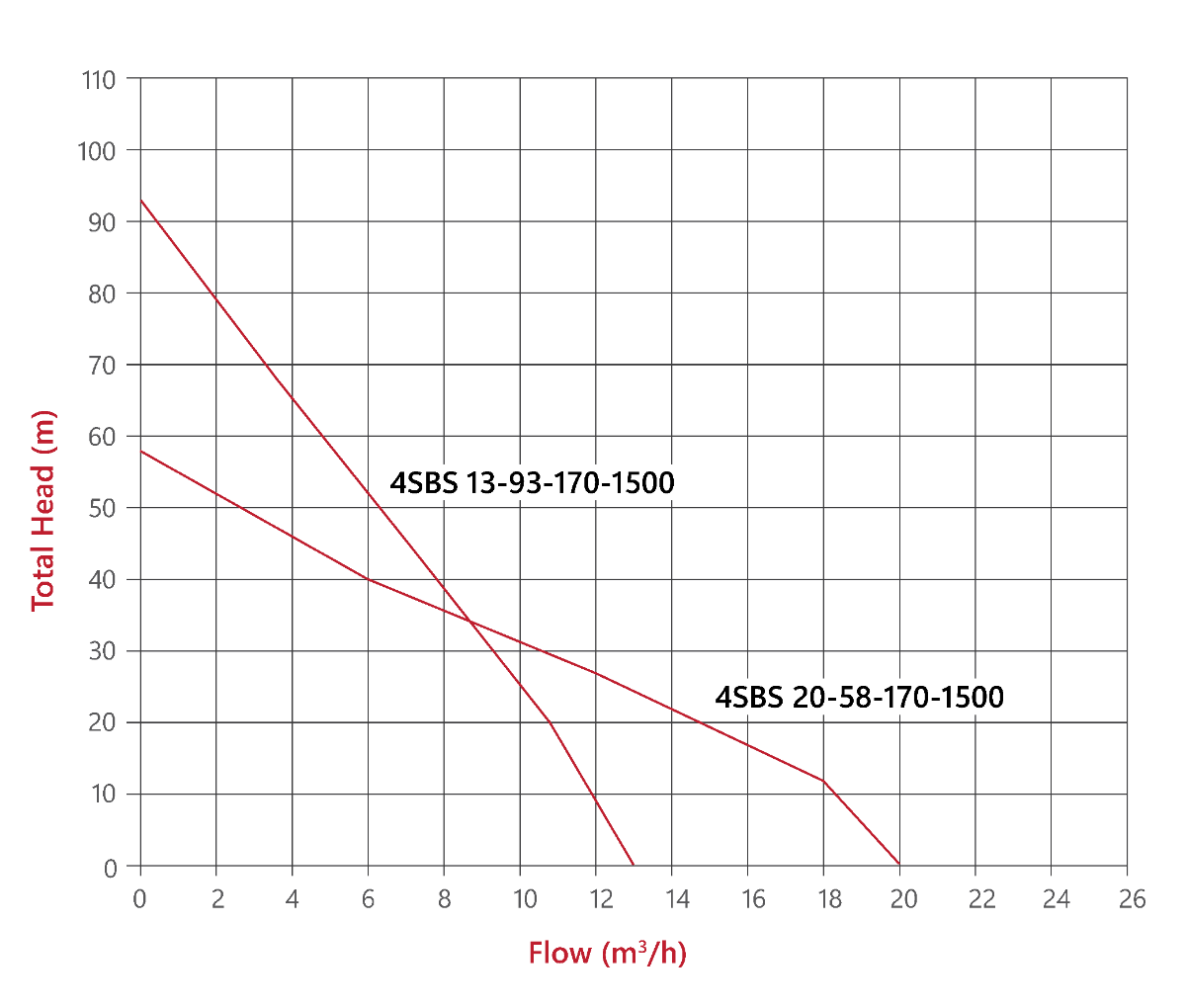

PERFORMANCE CURVES


TECHNICAL DATA


Model
Power
Max.Flow
Max.Head
Outlet (Inch)
4SBS 13-93-170-1500
1500W
13 m³/h
93 m
2"
4SBS 20-58-170-1500
1500W
20 m³/h
58 m
2"
